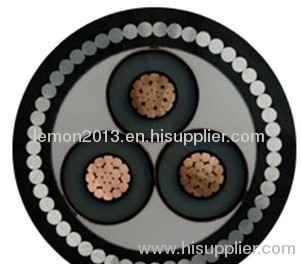

high-voltage cable YJV power cable manufacturer from China JIYANG CABLE CO.,LTD

Payment Terms:	T/T,L/C
Place of Origin:	Hebei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean

Type: High Voltage

Jacket: PVC

Brand Name: JIYANG

Application: Industrial

Insulation Material: PE

Conductor Material: Copper

salesjycable[at]hotmail[dot]com
Tyep, YJV YJV22 YJV32 YJV62
cores, 1-6 Jacket material, PVC
Wire maximum diameter, 10-425 mm Insulation thickness,

salesjycable[at]hotmail[dot]com

Tyep,	YJV YJV22 YJV32 YJV62
cores,	1-6	Jacket material,	PVC
Wiremaximum diameter,	10-425 mm	Insulation thickness,	1-5 mm
Nominal cross section,	1-700 mm2	Line core material,	Red copper wire
Coltage grade,	Low and medium voltage powercables 35kv and below
Insulation material,	Plastic insulated power cable

Production range:

type	cores	Rated voltage KV
		0.6/1	1.8/3	3.6/6,6/6	6/10,8.7/10	8.7/15-12/20	18/20-26/35
		Conductive wire core nominal section MM2
YJV YJLV	1	1.5-800	10-800	25-1200	25-1200	35-1200	50-1200
	3	1.5-300	10-300	25-300	25-300	35-300	-
	4	4-240	-	-	-	-	-
YJV YJLV	1	2.5-1000	10-1000	25-1200	25-1200	35-1200	50-1200
	3	2.5-300	10-300	20-300	25-300	35-300	-
	4	-	-	-	-	-	-
YJV22 YJLV22	-	-	-	-	-	-	-
	3	4-300	4-300	25-300	25-300	35-300	-
	4	4-240	4-240	-	-	-	-
YJV23 YJLV23	-	-	-	-	-	-	-
	3	4-300	4-300	25-300	25-300	35-300	-
	4	4-240	4-240	-	-	-

Type	Description
YJV	Copper core crosslinked polyethylene insulated PVCsheathed power cable
YJLV	Aluminium crosslinked polyethylene insulated PVCsheathed power cable
YJV22	Copper core crosslinked polyethylene insulationtape armored PVC sheathed power cable
YJLV22	Aluminium crosslinked polyethylene insulation tapearmored PVC sheathed power cable

Operating characteristic

1.Cable highest long-term working temperature is 90 C

2.Cable the ambient temperature under installation should not below 0 C, cable bending radius should be more than twenty times of cable diameter

3.In case of short circuit, the highest temperature of the conductor shall not be more than 250 C, duration is no more than 5 seconds

4.Laying temperature shall not be lower than 0 C

5.Short circuit, the highest temperature of the conductor shall not be more than 160 C, duration is no more than 5 seconds

6.Cable used for rated voltage 1.8/3 0.6/1, 3.6/6, 6/6, 6/10, 8.7/10, 8.7/15, 12/20, 21/35, 26/35 kv, power transmission and distribution system

7.YJV YJLV suitable for indoor and outdoor installation, can withstand certain laying traction, but unable to bear external mechanical forces of situations. Single core cable are not allowed in the pipe laying in ferromagnetic materials. YJV22, YJLV22 suitable for buried laying, able to bear external mechanical forces effect, but unable to bear large pulling force

Oil resistant cable: used for numerical control machine tool equipment electrical connection

Waterproof cable: used for outdoor, underground pipelines, CMC channel and humidity larger environment

Rat termite cable: used for important signal transmission cable, power cable, can effectively prevent the rats, ants and insects chewing on cable

Resistance to low temperature cable: used for outdoor, cold storage equipment working environment, the minimum resistance low temperature - degrees, in low temperature environment cable can still keep soft condition, no crack, convenient operation.

Environmental protection cable: the environmental protection plastics, widely used in environmental protection requirements of strict place.

Flame retardant cable: the flame retardant plastic, in case of fire can effectively prevent fire spread along the wire.

Integrated cable: according to the customer request or sample production lines, the various equipment line, line integrated in a piece of wire inside, plus sheath of protection wiring beautiful and extend cable service life. According to the different use environment can choose oil resistant sheath, waterproof jacket, resistance to low temperature sheath, ring protective sleeve, general PVC sheathed, elastic sheath, flame retardant sheath and so on many kinds of types for wiring operation to provide adequate agility and convenience
